Tama12

89,00

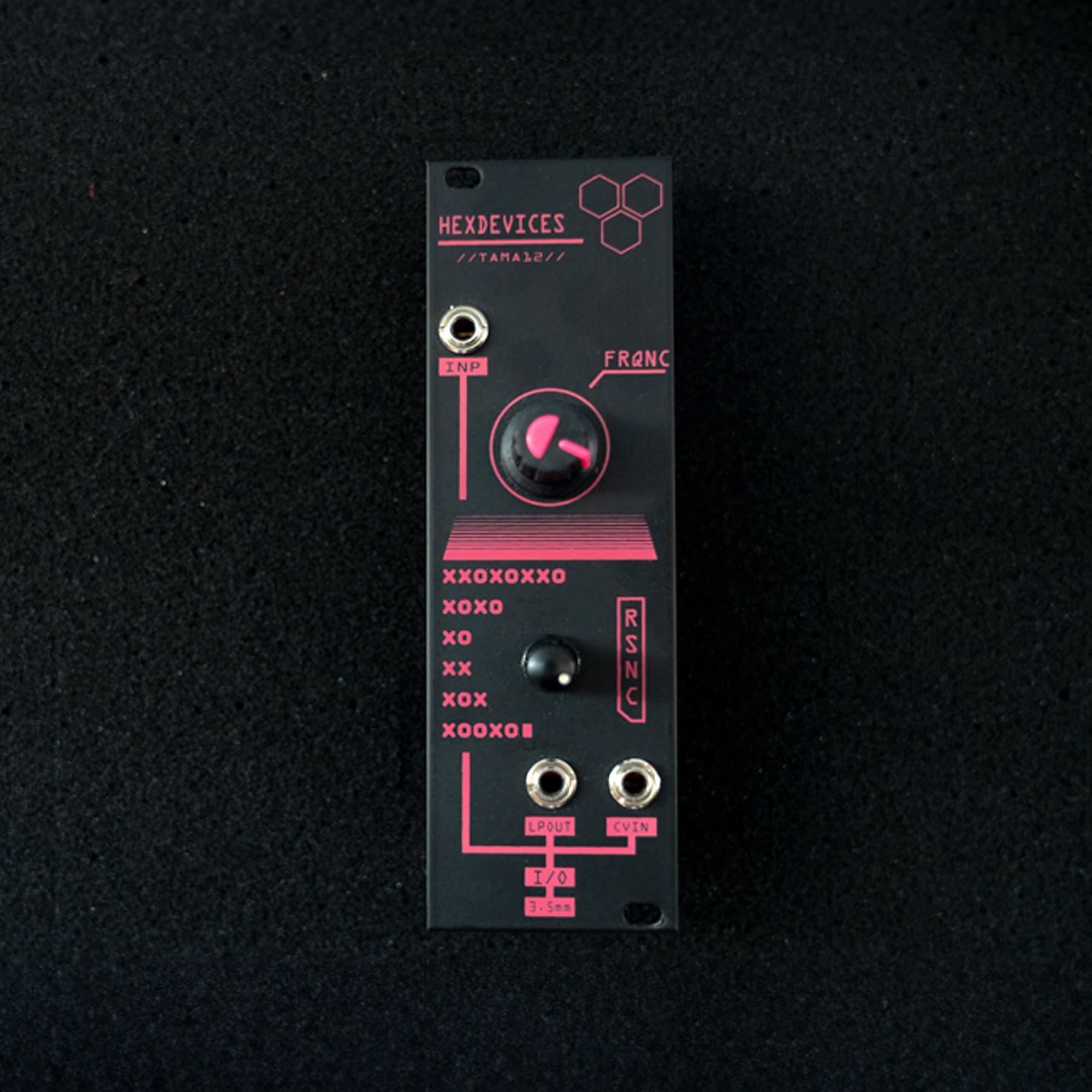

Tama12 is a very flexible second order 12db active low pass filter.
Based in OTA Tama12 is full of character and aggressiveness. It has two control knobs. One for the cutoff frequency, one for the resonance and a CV input for controlling the cutoff frequency.

It works with +-12V and the width is 8 HP.

Comes with eurorack power cable, user’s manual and M3 screws.

SKU: HXDTM12 Category: Tags: ,

5 in stock

Description

Tama12 is our unique active low pass filter with output amplification stage. A very flexible second order 12db filter based in OTA, rich of harmonics, with powerful resonance. The interface is pretty straight forward. Two control knobs, one for the cut-off frequency, one for the resonance and a CV input that controls the cut-off frequency.

In the back side of the module you can find 4 trimmers. Those trimmers gives to the user the ability of controlling and customize the filters behavior:

A. To change the input signal level, in order to avoid overdriving the filter and achieve minimum distortion. Or overdrive it to unlock the secret harmonics of the most aggressive filter you ever had.
B. To adjust the end point of the cut-off knob, in order to control the amount of frequencies that can pass with the cut-off knob completely closed and customize your cutoff knob behavior.
C. To adjust the CV input range, in order to control the high – low frequency limits.
D. To change the output signal level for I/o leveling matching or more aggressiveness and distortion.

Tama12 works with +-12V/+-18mA  and the width of the module is 8 HP.

Comes with eurorack power cable, user’s manual and M3 screws.

Additional information

Weight 0,152 kg
Dimensions 19 × 11,5 × 5,5 cm
